Compact Broad. & Comm. (DVB-H/WLAN) Antennas

Compact DVB-H/WLAN Antennas for Mobile Applications
[ 2008.6 ~ 2011.5 ] @ SNUST

• J. Kim, C. Yang, T. Yun, and C. Jung, Multi-mode multi-band (VHF/UHF/L/802.11a/802.11b) antennas for broadcasting/telecommunication services, IEEE AWPL, Vol. 10, pp. 41-44, Apr. 2011 (SCIE)
• I. Yeom and C. Jung, Compact Dual-band MIMO Antenna with High Isolation Performance, MOTL, Vol. 52, No. 12, pp. 2808-2811, Dec. 2010
• C. Yang, H. Kim and C. Jung, Compact broad dual-band antenna using inverted-L and loop for DVB-H applications, IET EL, vol. 46, no. 21, pp. 1418-1419, Oct. 2010
• C. Yang, J. Kim, H. Kim, J. Wee, B. Kim and C. Jung, Quad-band Antenna with High Isolation MIMO and Broad-band SCS for Broadcasting and Telecommunication Services, IEEE AWPL, vol. 9, pp. 584-587, July 2010
• J. Wee, J. Park, I. Yeom, B. Kim, and C. Jung, Compact DVB-H Antenna with Broad Dual-Band Operation for PMP Applications, IEEE AWPL, vol. 9, pp. 580-583, July 2010
• C. Yang and C. Jung, Broad dual-band PIFA using self-complementary structure for DVB-H applications, IET EL, vol. 46, no. 9, pp. 606-608, Apr. 2010
• I. Yeum, J. Park, J. Kim, J. Wee, B. Kim, and C. Jung, Compact and Contact Quad-Band (DVB-H UHF/L, WLAN 11 a/b) Antenna for PMP Applications, IET EL, vol. 46, no. 1, pp. 11-13, Jan. 2010

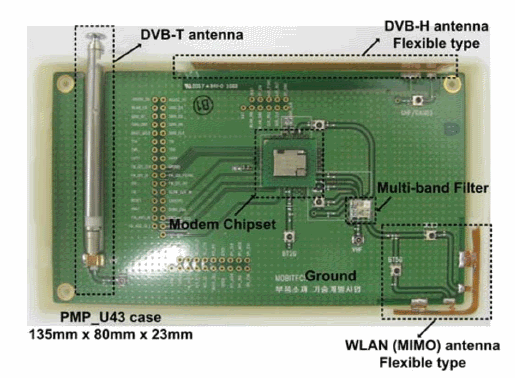

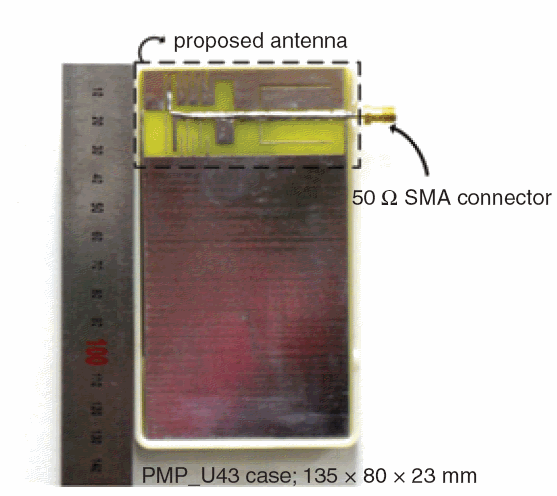

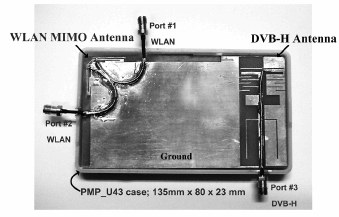

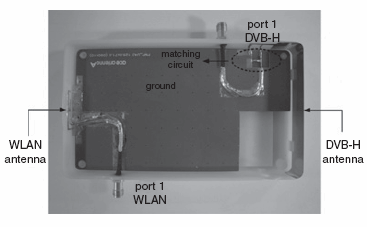

Photograph of the fabricated antennas in the PMP mockup case.

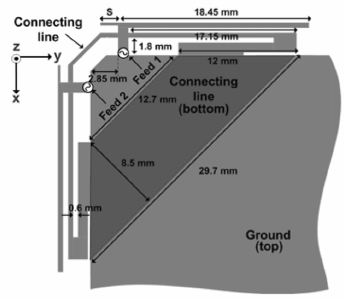

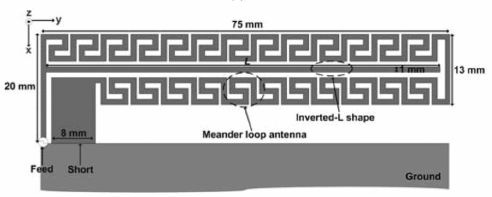

Geometry of the proposed antenna. (a) DVB-T (VHF). (b) DVB-H (UHF/L). (c) WLAN MIMO (11a/b).

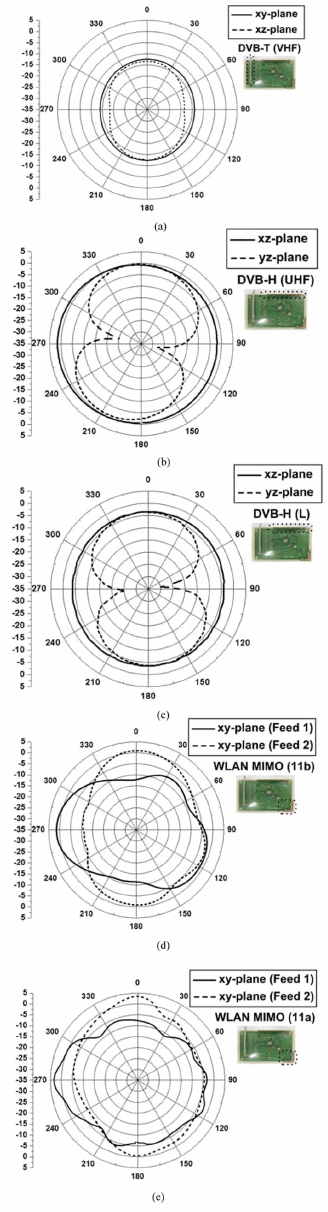

Measured radiation patterns at 200, 660, 1470, 2450, and 5450 MHz.

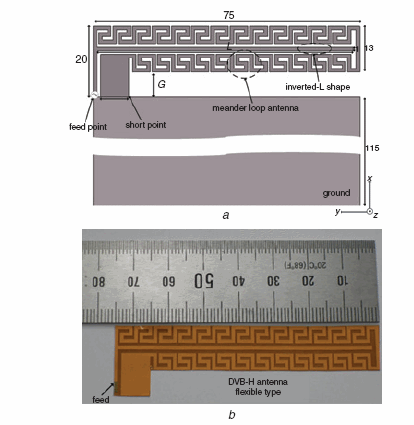

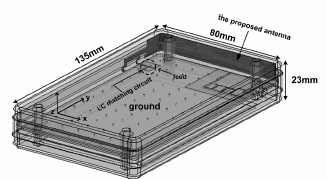

Flexible PCB antenna geometry and PMP mock-up photographs. Radiation patterns at 470, 660, 860, and 1470 MHz.
